FCP - Fidelux Canopy Series & Fuel Pump
Product Description

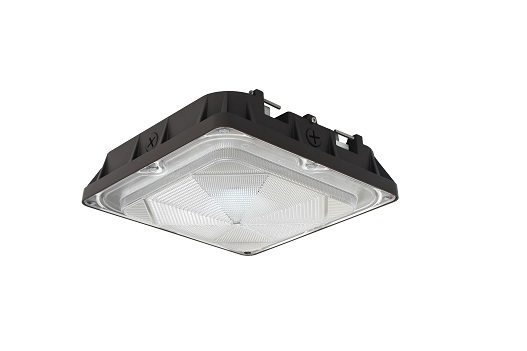

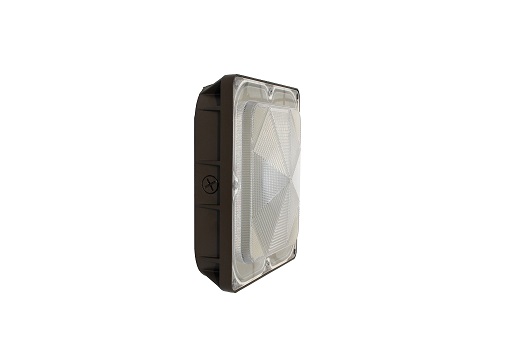

The Fidelux LED Canopy luminaire offers energy savings, long life, and an easy-to-install design. This LED luminaire is the smart choice for canopy lighting in all areas including fuel stations and commercial, industrial, and institutional applications.
Features & Benefits
- Low-profile, beautiful appearance
- Excellent heat dissipation
- Efficient light distribution
- Labor-saving installation
- IP65 Rating
- ADC12 aluminum heat sink
- High light transmittance PC, anti-UV, and fire resistant lens
- 10KV surge protection
- Photoelectric motion sensor compatible
- 10 year warranty
Applications
- Fuel pump canopy
- Parking structures
Mounting Options
- Surface mounting (Standard for all Wattages)

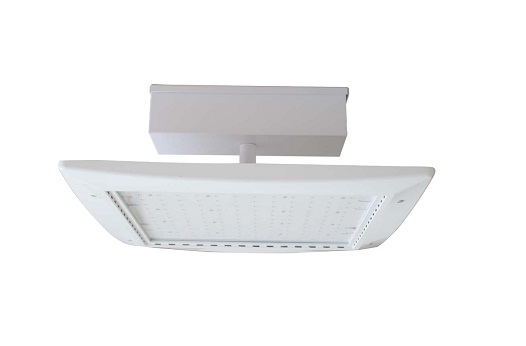

- Pendant mounting- 1/2” threaded KO provided on all wattages except 120W. Rigid pipe and connectors not included (See Page 4 Installation instructions) 120W comes standard with 12” pendant with external driver box (See Page 1)
- Junction box mounting, Adapts to 3”& 4” round/octagon and single gang
Listings
- UL
- IP65
- DLC

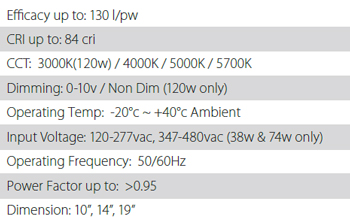

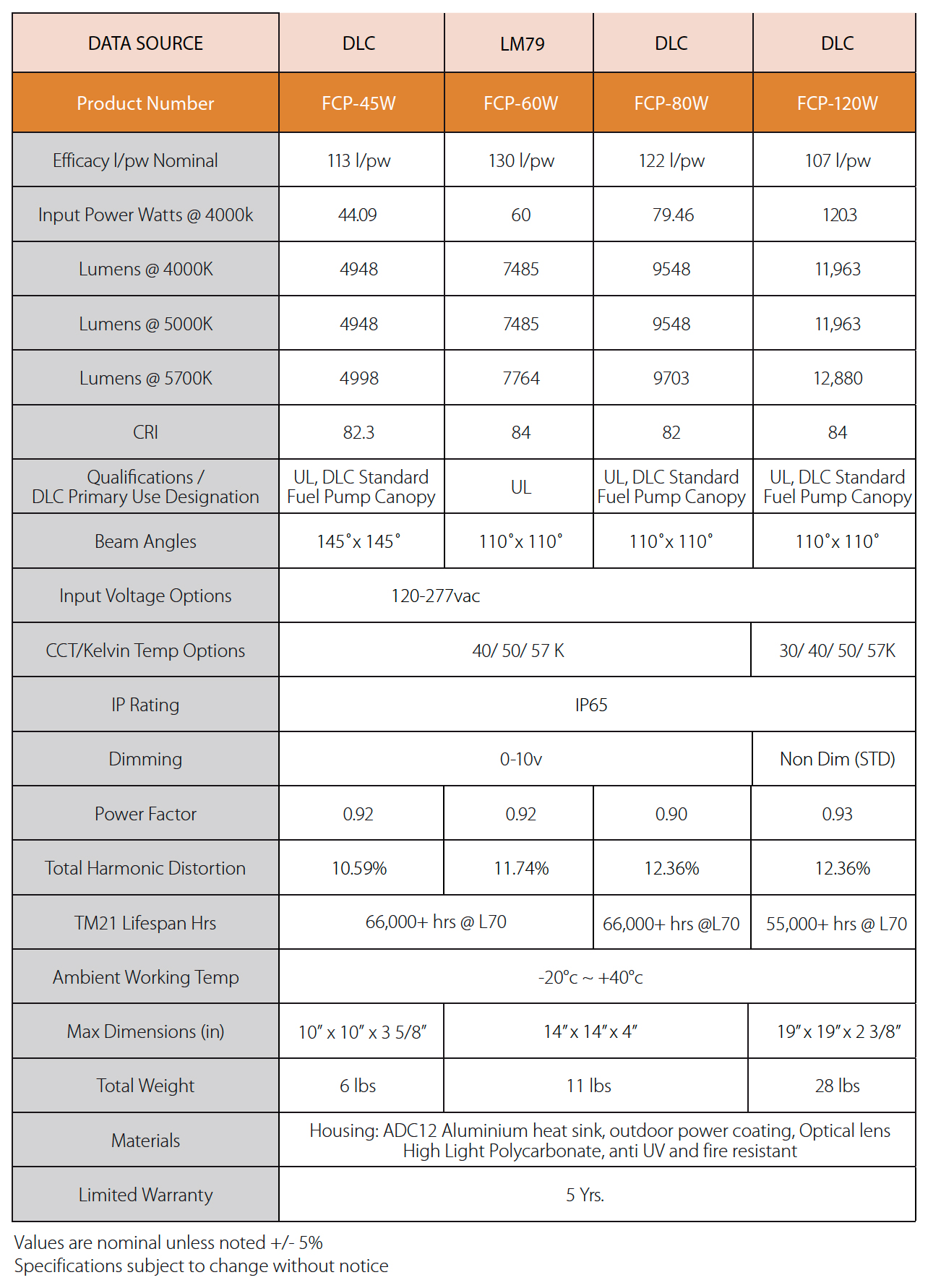

Performance Summary
