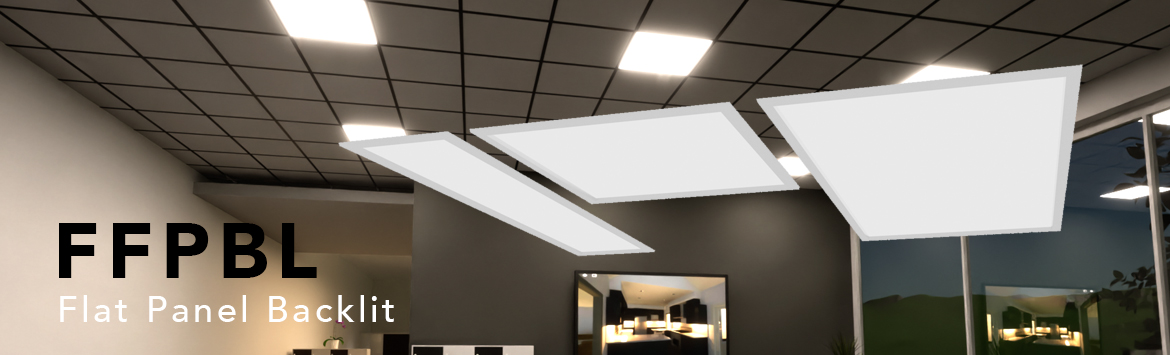

FFPBL – Fidelux Flat Panel
Backlit Series
Product Description

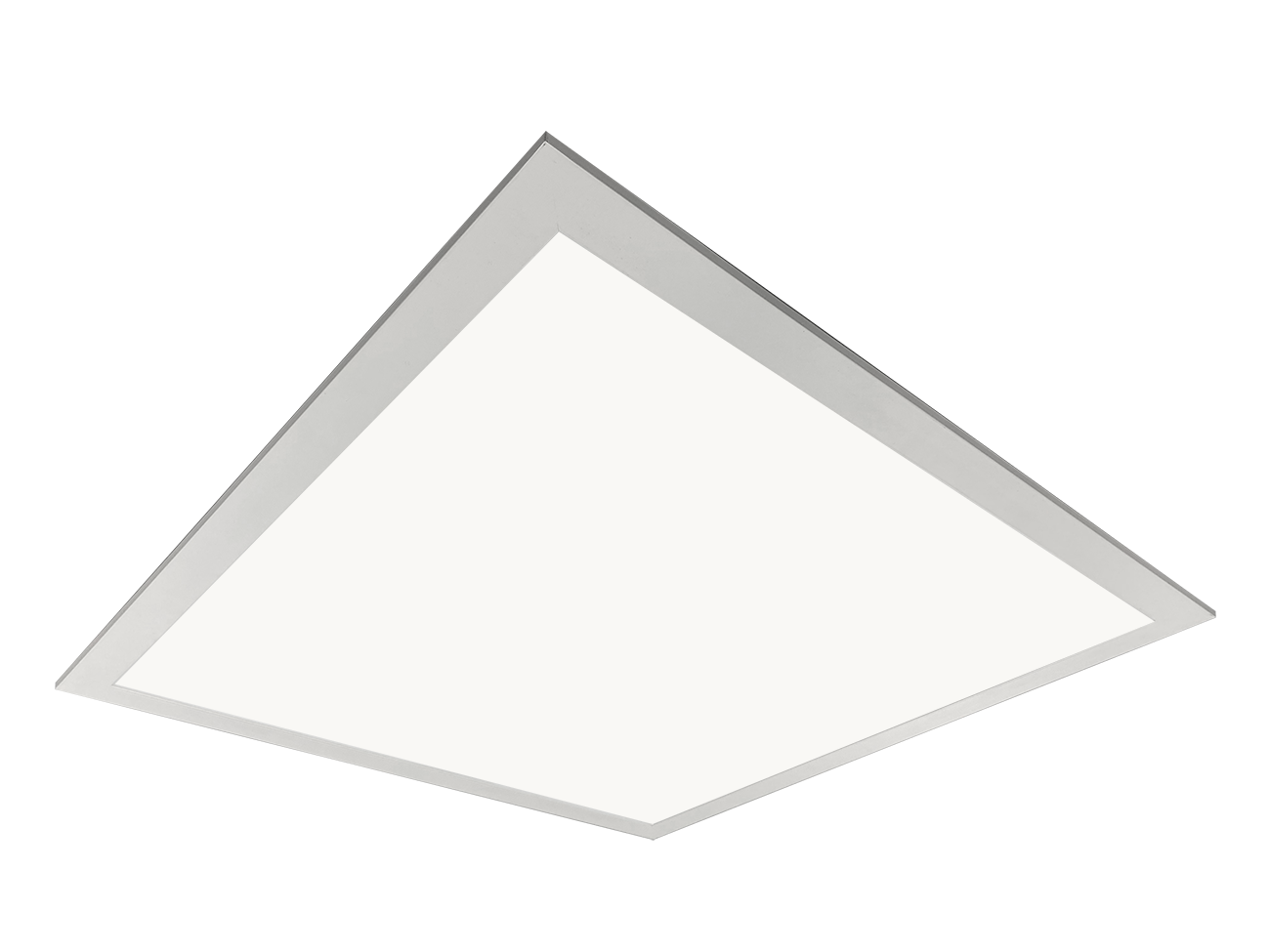

The Fidelux FFPBL Flat Panel Backlit Series is designed to blend in all commercial environments like offices, institutions, retail and healthcare applications. Available in 1’x4’, 2’x2’ and 2’x4’ models, units provide high performance and efficiency for standard T-grid ceiling sizes. Lightweight and easy to install, the FFPBL is perfect for new installations and seamless replacements for legacy fluorescent. 1-10V Dimming and tunable CCT come standard.
Features & Benefits
- Secured frosted polystyrene lens
- Energy efficient performance up to 124 lm/W
- Powder-coated 16 gauge steel housing
- IC-rated for insulation contact
- 50,000 Hour operating life (L70)
- 1-10V Dimming standard
- Battery backup option

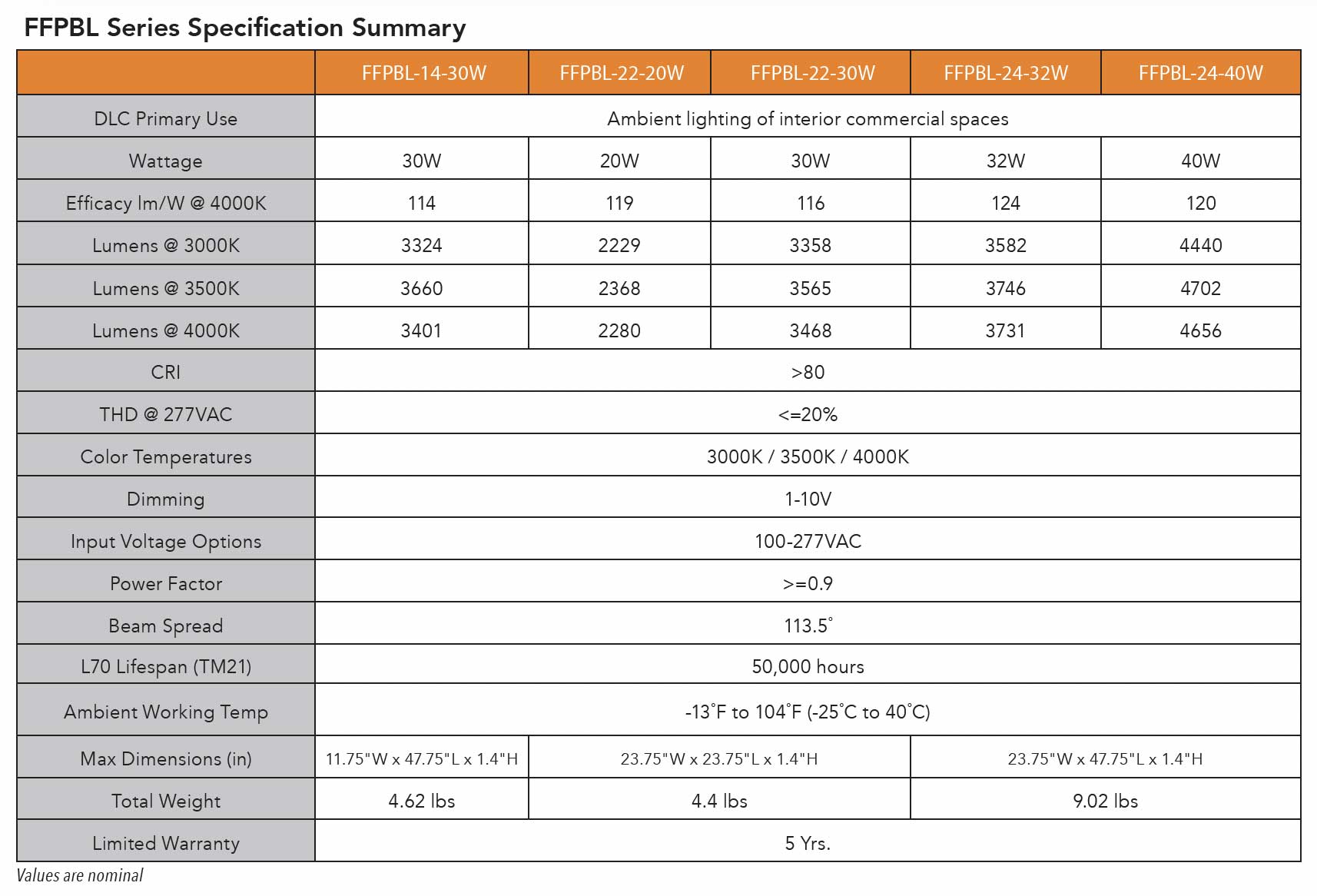

Technical Details
- Housing: Powder-coated 16 gauge steel with earthquake clips, embossed for rigidity
- Lens: Frosted polystyrene, 73% transmission
- LEDs: Beam spread ~113.5°, LM-80 tested, CRI 80, 50,000 hours (L70), selectable CCT
- Electrical: 120-277V, 50/60 Hz, PF >0.9, THD <20%; Drive current varies by size (30W, 20W, 32W, 40W)
- Emergency Power: Optional EM backup packs, 90 min duration (995 lm for 2', 1922 lm for 4')
- Controls: 1-10V dimming standard
- Temperature: -13˚F to 104˚F (-25˚C to 40˚C)
- Access/Wiring: Two 3/4" conduit entries, crosshead screwdriver access
- Mounting: Ceiling T-grid, drywall kit, surface mounting kits available
- Weight: 1x4 – 4.62 lbs; 2x2 – 4.4 lbs; 2x4 – 9.02 lbs
- Listings: ETL Damp Location
- Warranty: 5 year limited warranty
