FSTRS – Smart Stairwell Sensor Series
Efficient, Reliable Stairwell Illumination
Product Description

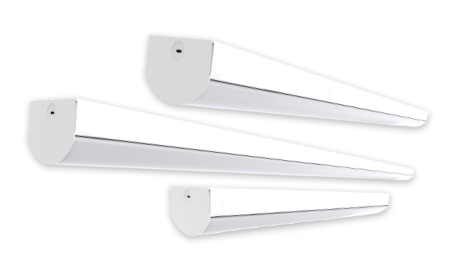

Fidelux FSTRS Smart Stairwell Sensor fixtures, available in 2, 4, and 8 foot lengths in various
CCTs and wattages, efficiently and effectively illuminate stairwell landings and passageways in
commercial, industrial, and multi-family applications. The FSTRS provides a visually appealing
design as well as performance-driven inner components, producing a high quality luminaire that
meets today’s highest standards.
The S2 sensor has a detection range of up to 39 feet with standard mounting heights of up to 20
feet. It features both Occupancy and Daylight monitoring with step dimming, and differentiates
between natural and artificial light. An Ambient Learn function allows fine-tuning of light
sensing operation. Contact the factory for default-to-on sensor operation or option S1 for
failsafe operation.
Industry-leading premium drivers feature 12V auxiliary output, allowing easy integration of
sensors, wired/wireless controls, automation, and connectivity. S2 Sensors can link up to 15
wired units up to 100 feet. Contact factory for wireless linking or custom controls.
Features & Benefits
- Class P LED driver
- 0-10V, 1-100% flicker-free dimming; Dim-to-off
- Step dimming
- 12V auxiliary output from driver
- Available in 3000K, 3500K*, 4000K and 5000K
- CRI >80
- Factory-installed emergency lighting option
- L70 >100,000 hrs
- 10 year warranty
S2 Sensor Features
- Occupancy and Daylight monitoring
- Differentiates between natural and artificial light
- Daylight dimming/off
- Tri-level dimming
- Motion sensor detects movement up to 39 feet
- Standard mounting heights up to 20 feet
- IR remote programming and testing via the S2RC remote
- Ambient Learn function for fine-tuning sensor performance
- Sensor can control up to 15 wired units up to 100 feet
- Contact factory for wireless linking
- Contact factory for default-to-on sensor operation
Mounting Options
- Wall / Surface Mounting
- Suspended Mounting
Construction
- 22 gauge white powder coated steel
- IK08 88% transmission frosted polycarbonate lens
Listings
- ETL Damp Location
- DLC Premium*
