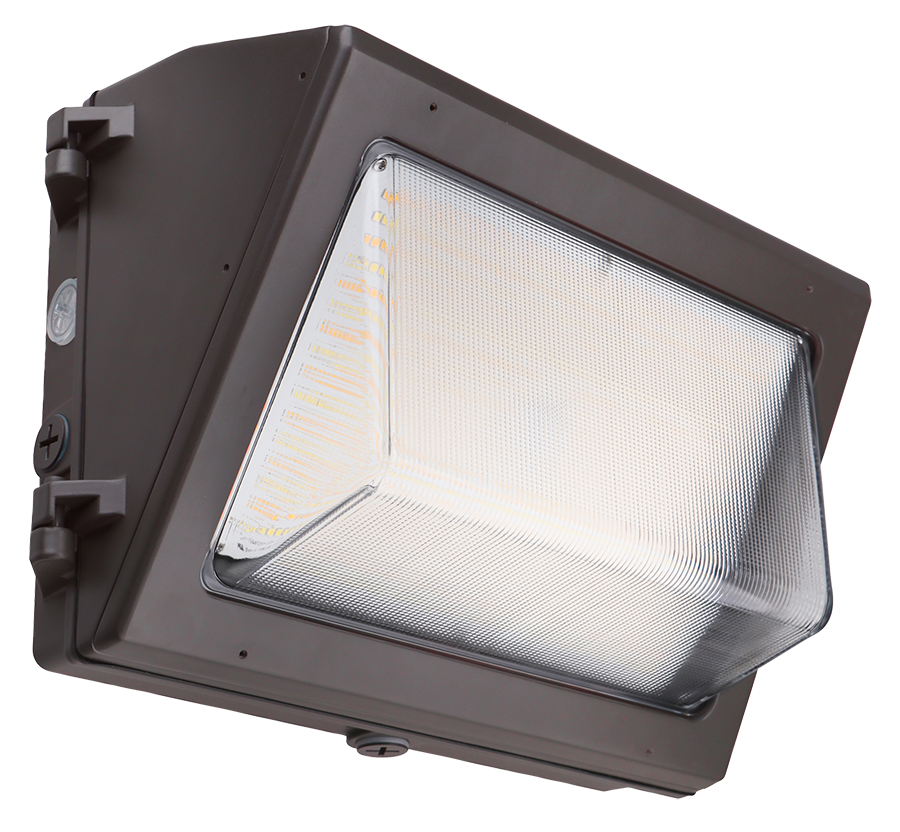

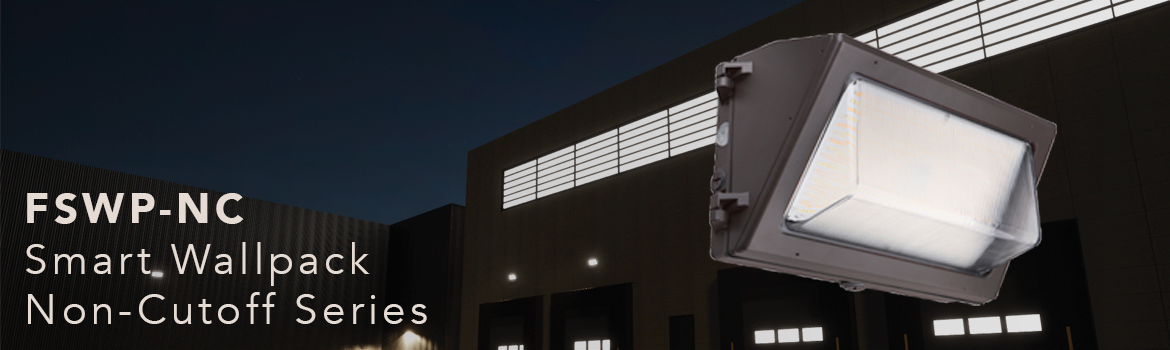

FSWP-NC – Fidelux Wallpack
Non-Cutoff Series
Product Description
The Fidelux FSWP-NC Smart Wallpack Non-Cutoff Series provides high light levels in a highly durable weather-resistant package. This series is designed for wall-mounted outdoor applications such as over-the-door, egress lighting, perimeter/accent illumination, and security lighting environments.
Features & Benefits
- Die-cast aluminum housing with powder coated bronze finish
- Multiple conduit entries, embossed angle guide
- Borosilicate glass lens, 88% transmission
- Beam spread 95°, CRI >80
- Operating life >54,000 hours (L70)
- Selectable CCT
- 120-277V, 50/60 Hz, PF >0.9, THD <20%< /li>
- Drive current: 29W – 0.3A; 40W – 0.4A; 60W – 0.6A; 80W – 0.85A; 100W – 1.0A
- 10Kva Surge Protector standard
- 0-10V dimmable standard, optional photocell
- Operating temperature: -40˚F to 122˚F (-40˚C to 50˚C)
- Hinged, removable housing front for easy access
- Wall mounting via screws to junction box or surface
- Weight: 29W – 5 lbs; 40W+ – 8 lbs
- DLC Premium, UL Wet Location, IP65
- 5 year limited warranty
