FTRCL – Fidelux Troffer
Architectural LED Series
Product Description
Fidelux FTRCL Architectural LED Troffer series luminaires offer a modern form designed for use in commercial, retail, healthcare, and institutional spaces. A sleek, uniquely designed polycarbonate center lens delivers a unified spread without pixelation. Driven by performance and energy savings, the FTRCL produces up to 134 lm/W.

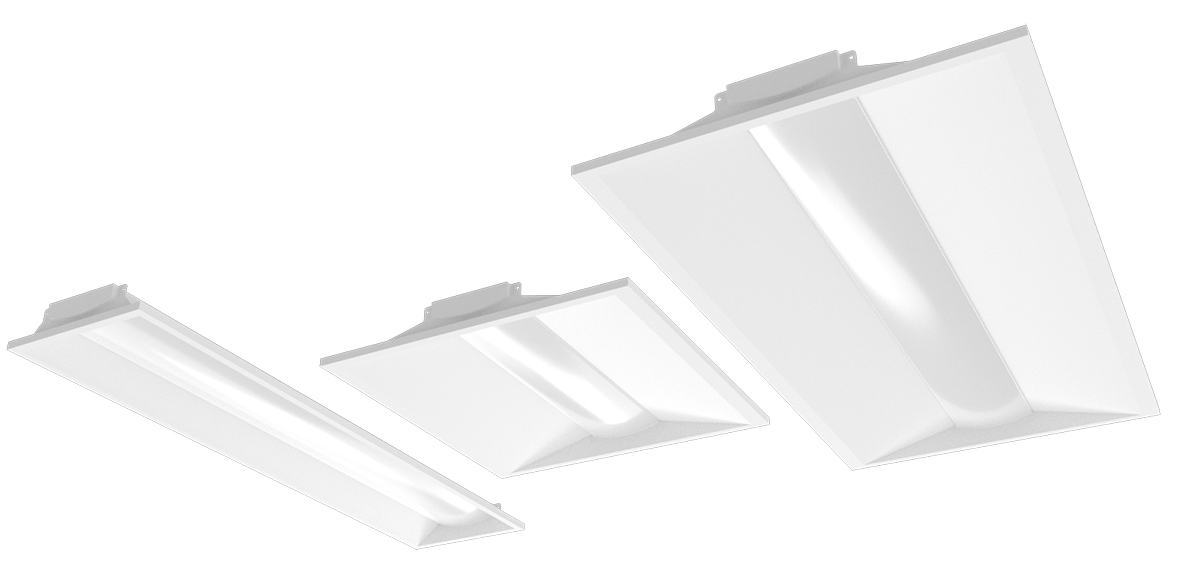

CCT selectable settings from 30K to 50K via an easily accessible external switch located on the backside of housing enables quick setup and integration. Multiple recessed sizes including 1x4, 2x2, and 2x4 types offered along with optional hardware for surface mount applications.
Features & Benefits
- Modern, architectural form
- High transmission frosted polycarbonate lens
- Energy efficient performance up to 134 lm/W
- Post-painted powder-coated steel housing
- >50,000 hour operating life (L70)
- 0-10V Dimming standard

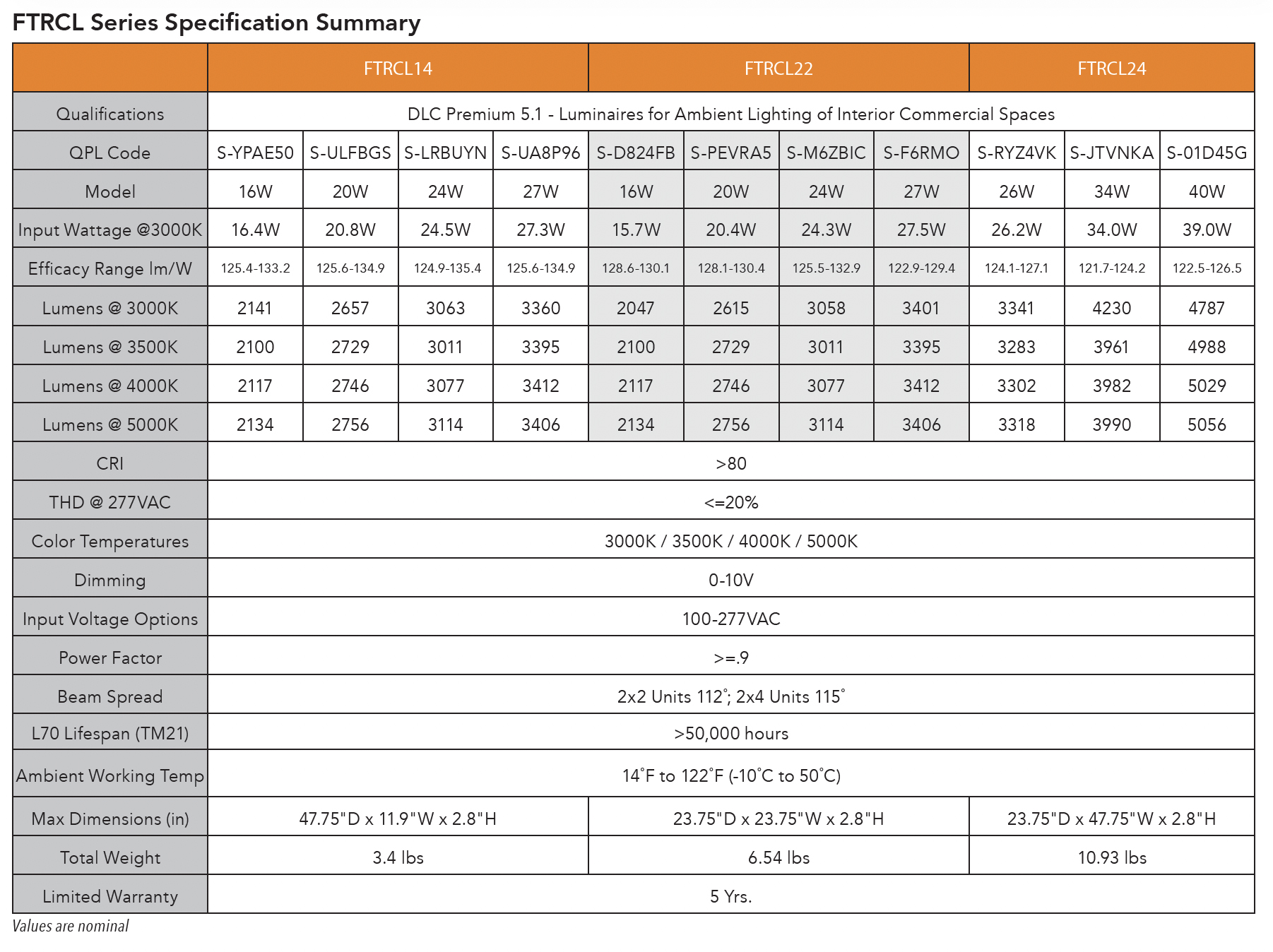

Technical Details
- Housing: Post-painted powder coated steel
- Lens: Zero pixelation frosted polycarbonate
- LEDs: Beam spread 2x2 – 112°, 2x4 – 115°; CRI >80; >50,000 hours (L70); selectable CCT
- Electrical: 120-277V, 50/60 Hz, PF ≥0.9, THD <20%; Drive current varies by unit size
- Emergency Power: Optional internal EM backup packs, 90 min duration at 1875 lm
- Controls: 0-10V dimmable standard
- Temperature: -14˚F to 122˚F (-10˚C to 50˚C)
- Access/Wiring: External connectors, accessible CCT switch
- Mounting: Recessed T-grid, earthquake clips standard
- Weight: 1x4 – 3.4 lbs; 2x2 – 6.54 lbs; 2x4 – 10.93 lbs
- Listings: DLC Premium, ETL, IC-rated
- Warranty: 5 year limited warranty
