FSTRSC – Fidelux Stairwell

Smart Cutoff Sensor Series

FSTRSC Banner
Product Description

The Fidelux FSTRSC Smart Stairwell Cutoff Sensor Series provides a wide range of installation options including mid-wall, corner, and 90° mounting where wall and ceiling meet. The Stairwell Cutoff Sensor Series delivers superior energy savings with S2/S1 microwave sensors while providing maximum motion coverage.

Perfect for stairwells in commercial, hospitality, and multi-family applications, this sleek luminaire can also be mounted vertically along walls for continuous, even light. Offering an L70 of 216,000 hours, the FSTRSC is available in 2’ and 4’ lengths with multiple lumen packages and tunable CCT.

Features & Benefits
  • Impact-resistant frosted acrylic lens
  • Energy efficient performance up to 131 lm/W
  • Durable post-painted finish
  • 216,000 hour operating life (L70)
  • Sensing and control options
  • Efficacy: up to 131 lm/W
  • CRI: up to 85
  • CCT: 3000K / 3500K / 4000K / 5000K
  • Operating Temp: -4°F to 113°F (-20°C to +45°C)
  • L70: 216,000 Hours

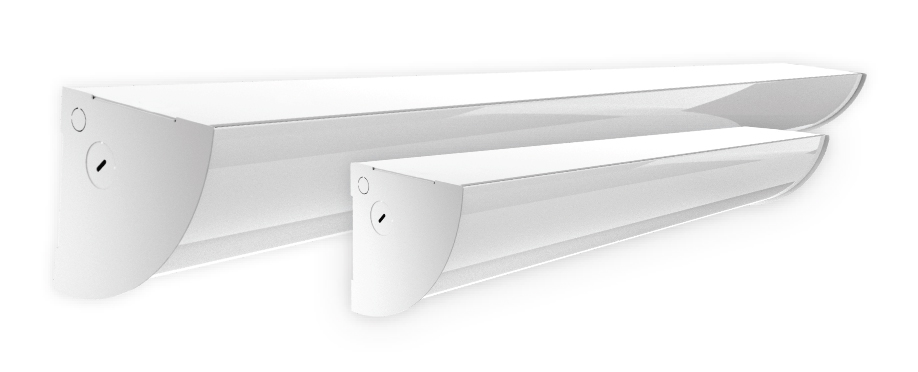

FSTRSC Products
S2 Sensor Features
  • Occupancy and daylight monitoring
  • Differentiates between natural and artificial light
  • Daylight dimming/off
  • Tri-level dimming
  • Motion detection up to 39 feet
  • Standard mounting heights up to 20 feet
  • IR remote programming via S2RC remote
  • Ambient Learn function for fine-tuning sensor performance
  • Controls up to 15 wired units within 100 feet
  • Contact factory for wireless linking or default-to-on operation
FSTRSC Badges
Mounting
  • Wall / Surface Mounting
Construction
  • 22 gauge white powder coated steel
  • IK08 frosted polycarbonate lens, 88% transmission
Listings
  • ETL Damp Location
  • DLC Premium
