FRHBVP – Fidelux High Bay
Round LED Series
Product Description

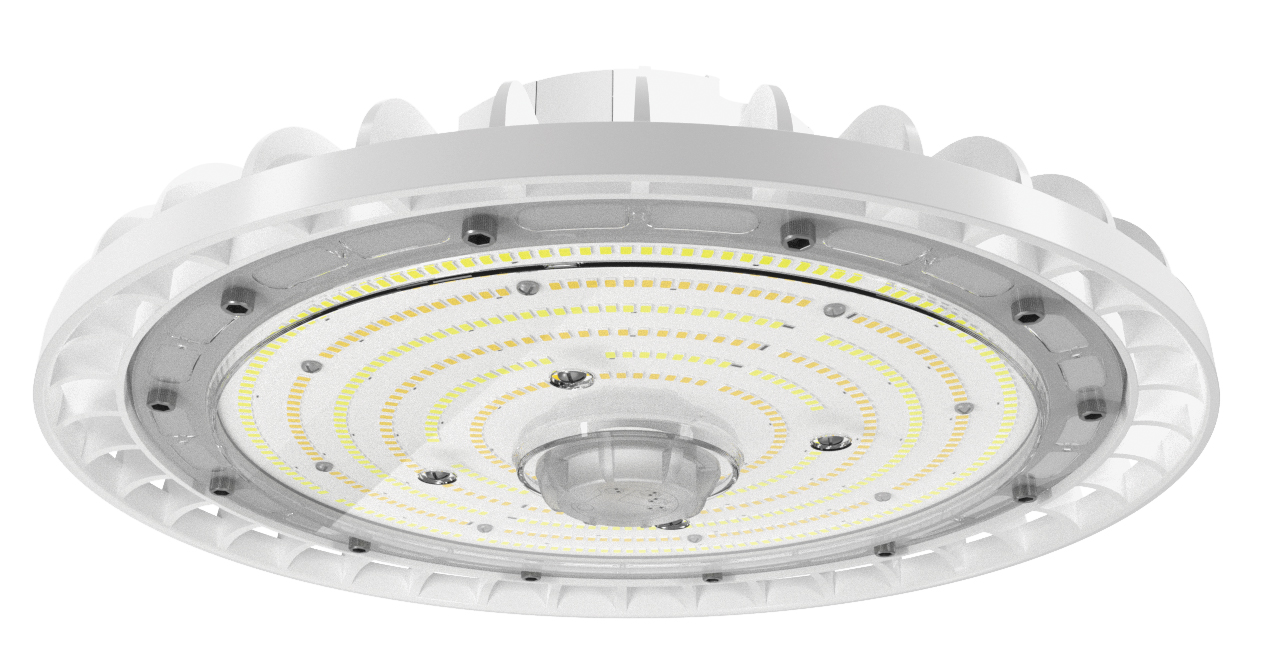

The Fidelux FRHBVP Round LED High Bay series is designed for high bay applications requiring energy efficiency, high performance, reliability, and maintenance-free operation. FRHBVP comes standard with selectable CCT producing up to 150 lm/W. The polycarbonate anti-UV IK08 lens offers beam spreads of 60°, 90°, and 120°. Optional integrated sensors provide PIR and ambient light functions, programmable in the field with a remote control.
External Emergency Battery Packs are available for all wattages, offering flexibility for factory- or field-installation. This series also supports a wide range of mounting options.
Features & Benefits
- IK08 impact resistant polycarbonate lens
- Energy efficient performance up to 150 lm/W
- Corrosion resistant die-cast aluminum housing
- Powder-coated white finish
- >50,000 hour operating life (L70)
- 0-10V Dimming standard

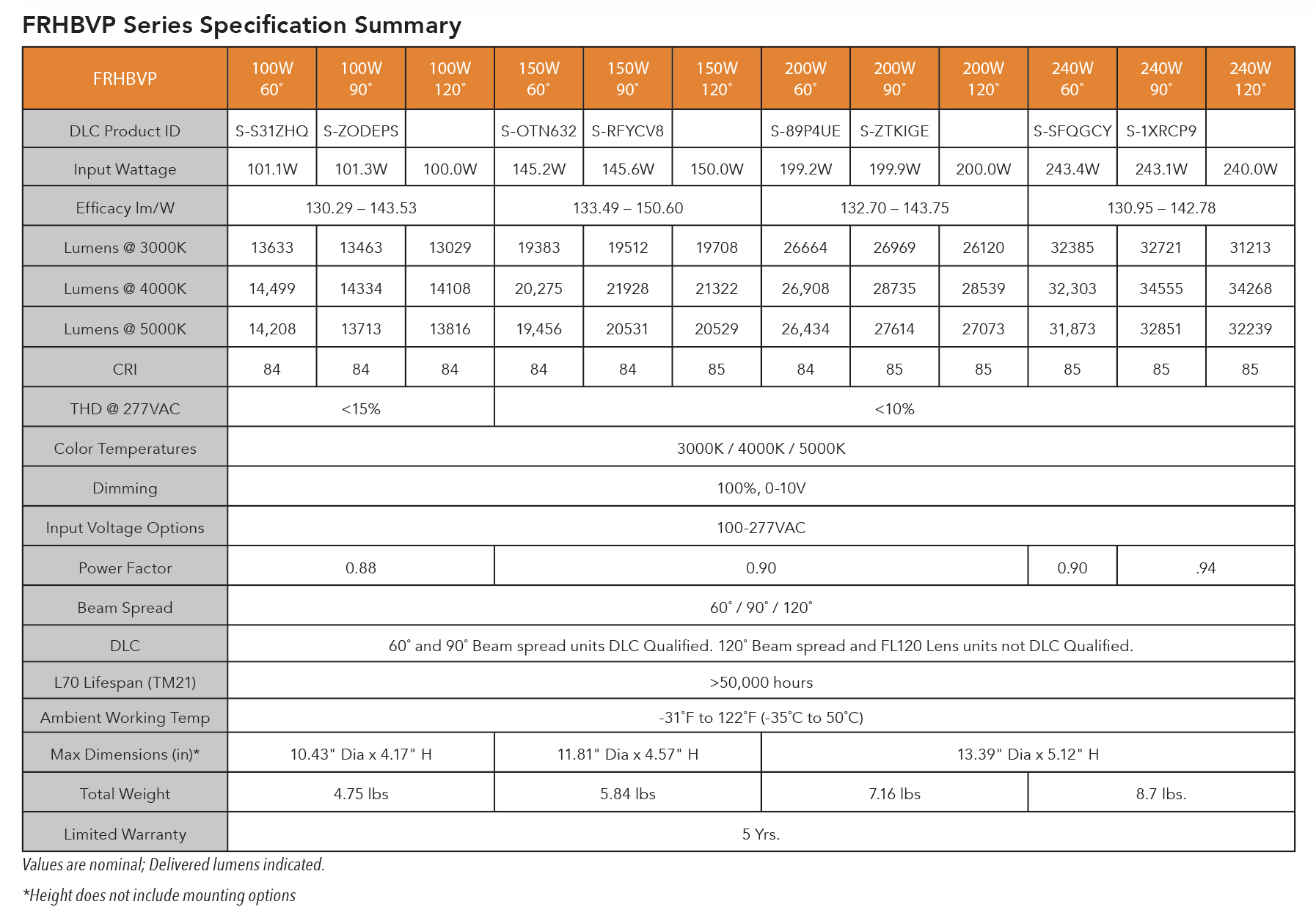

Technical Details
- Housing: Corrosion resistant die-cast aluminum
- LEDs: CRI >84, operating life >50,000 hours (L70), selectable CCT
- Optics: 60°, 90°, or 120° IK08 polycarbonate lens; frosted lens option; aluminum and prismatic shades available
- Electrical: 120-277V, 50/60 Hz, PF >0.9, THD <20%; Drive current – 100W: 0.8A; 150W: 1.2A; 200W: 1.7A; 240W: 2.0A
- Emergency Power: External EM packs, 90 min duration; FEM-T25 and FEM-T40 options with remote testing
- Controls: 0-10V dimmable standard; optional PIR/Ambient sensor; optional remote for programming
- Temperature Range: -31˚F to 122˚F (-35˚C to 50˚C)
- Access/Wiring: External connectors, 5' power cord, IP65 CCT switch, 1' dimming wire
- Mounting: Closed Ring (included), Yoke, Hook, Pendant options; pipe adapters available
- Weight: 100W – 4.75 lbs; 150W – 5.84 lbs; 200W – 7.16 lbs; 240W – 8.70 lbs
- Listings: UL, DLC Premium
- Warranty: 5 year limited warranty
