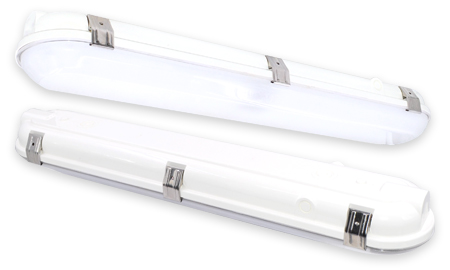

FVT – Vaportight Linear LED
Durability, Safety & Efficiency
Product Description
The FVT Vaportight series was designed to withstand rugged environments exposed to wet, damp,
and cold conditions. It is ideal for areas exposed to high levels of dust and airborne
particles. Applications range from canopy lighting to hospitals, schools, workshops, industrial
facilities, warehousing, and other areas requiring vaportight operation without sacrificing
performance.
For stairwell and parking applications, settings are easily updated via dipswitch. With features
including a continuous poured gasket and stainless steel lens clamps, the FVT meets and exceeds
durability standards.
Control options include an MSSD microwave step-dimming/daylight-harvesting occupancy sensor with
dipswitch programming and optional handheld remote, further increasing safety, energy savings,
and rebate eligibility.
Features & Benefits
- Rugged UV stabilized housing
- Continuous poured gasket ensures IP65-rated seal
- Impact-resistant frosted polycarbonate lens
- Corrosion-resistant options available (white acetal clips)
- Up to 15 units can be linked (hardwired)
- Factory-installed emergency pack option/IP65-rated test button
- 10kVA Surge protection standard
- L70 100K hours
- 0-10V Dimming
- 5 Year warranty
- Operating temperature -40˚F to 122˚F (-40˚C to 50˚C)
MSSD Programmable Sensor Features
- Occupancy and Daylight threshold
- Programmable standby and hold time period
- Always-on setting (stairwell, passageway, parking garage)
- Standby dimming level
- Optional remote control with memory function
- Mounting height up to 20’ (low bay) or 40’ (high bay)
- Detection range up to 65 feet
Mounting Options
- Surface Mounting standard
- Suspension Kit available
Construction
- Continuous poured gasket
- Rugged UV stabilized housing
Listings
- UL Wet Location
- UL 1598 / 8750
- DLC Premium with integral controls for best rebate
