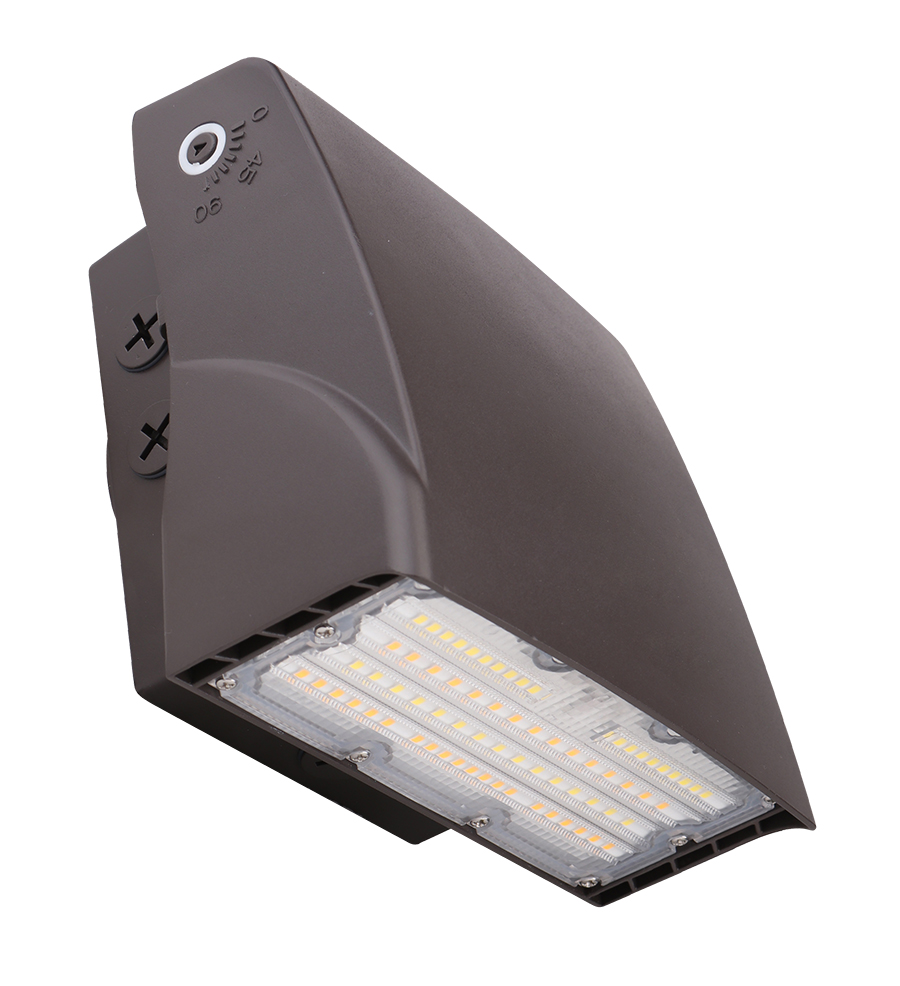

FSWP-FC – Fidelux Wallpack
Full Cutoff Series
Product Description
The Fidelux FSWP-FC Smart Wallpack Full-Cutoff Series provides bright cutoff illumination while maintaining a compact footprint and IP65 certification. This series is designed for wall-mounted outdoor applications such as over-the-door, egress lighting, perimeter/accent illumination, and security lighting.
Features & Benefits
- Die-cast aluminum gasketed housing with powder coated bronze finish
- Polycarbonate lens, 88% transmission
- Type II distribution, beam spread 108.5°
- LM-80 tested LEDs, CRI >70
- Operating life >60,000 hours (Calculated), 54,000 (Reported) L70
- CCT selectable via internal switch (30K / 40K / 50K)
- 100-277V, 50/60 Hz, PF >0.9, THD <20%< /li>
- Drive current: 15W: 0.15A; 30W: 0.31A; 50W: 0.51A; 80W: 0.81A
- 0-10V dimmable standard, optional photocell
- Operating temperature: -40˚F to 122˚F (-40˚C to 50˚C)
- Access via hinged housing with single cross-head screw
- Wall and vertical surface mounting with adhesive gasket
- Weight: 15/30W – 3 lbs; 50W – 4.4 lbs; 80W – 4.85 lbs
- DLC Premium, UL Wet Location, IP65
- 5 year limited warranty
