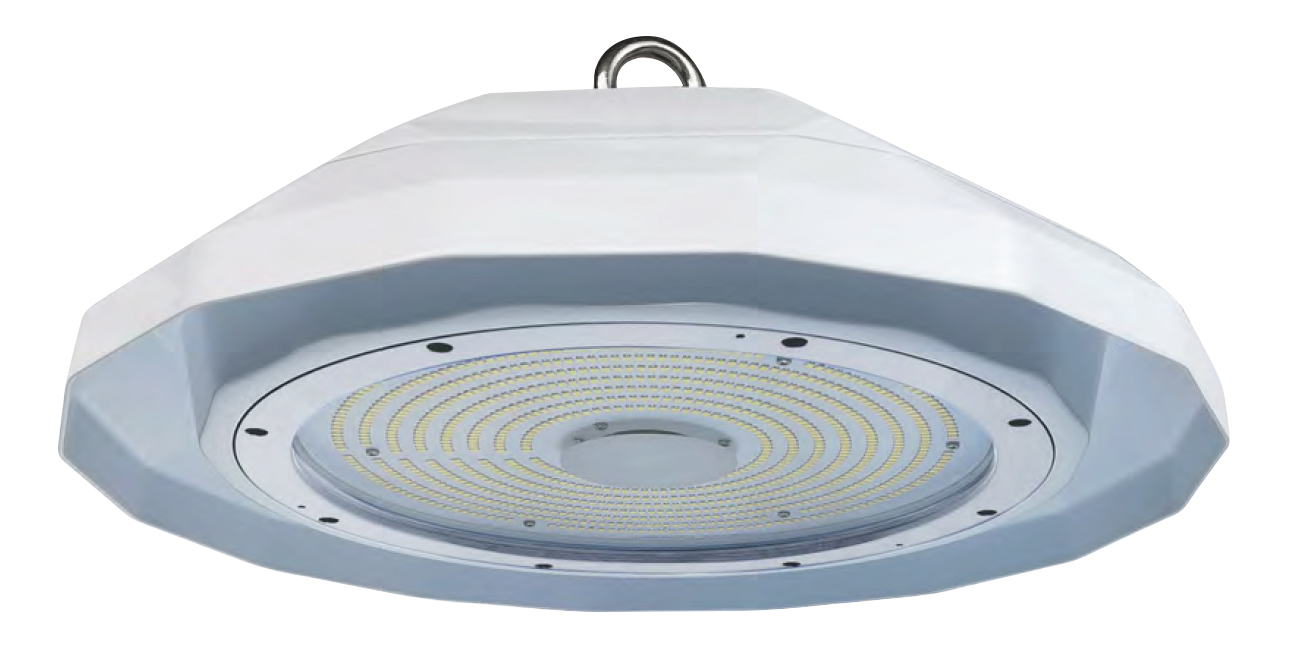

FRHBNSF – Fidelux High Bay
Smart NSF Food Grade Series
Product Description
FRHBNSF Food Grade Highbay luminaires provide high efficiency and energy savings in a rugged yet contemporary NSF-Certified IP66 / IP69K die-cast aluminum housing. The FRHBNSF series is primarily designed to operate in environments for food handling, food processing, and food preparation, as well as other applications requiring direct, high-pressure washdowns.
With light output of up to 150 lm/W, the FRHBNSF Series also offers a wide operating temperature range, corrosion-resistant tempered glass lenses, and options for versatile motion and light sensing. Microwave motion / ambient sensing can be field programmed with handheld remote.

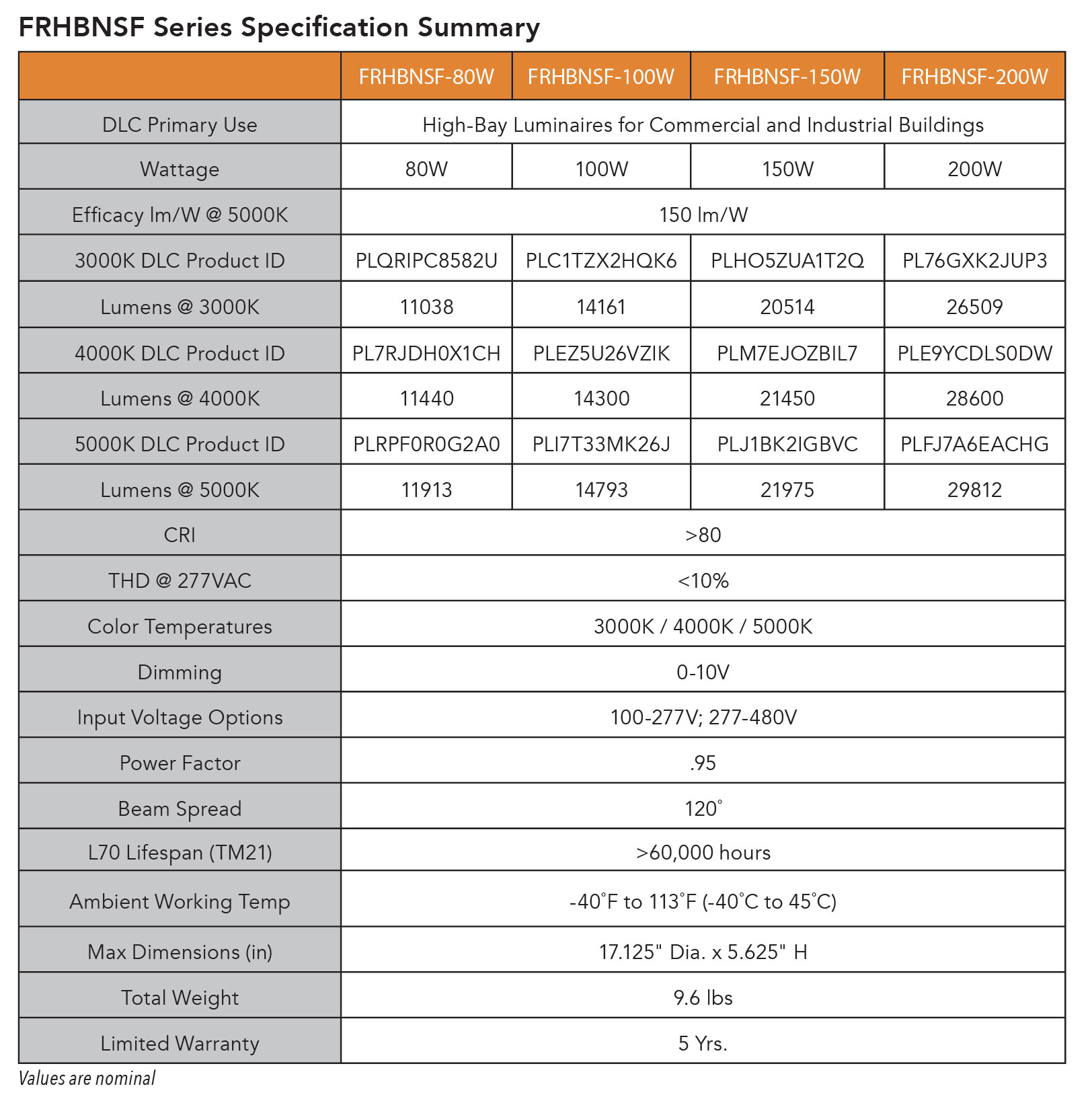

Performance Summary
- Replace with your summary points here
- Energy efficiency, durability, etc.
- Any key highlights you want listed
Features & Benefits
- Corrosion-resistant tempered glass lens
- Energy-efficient performance up to 150 lm/W
- Die-cast aluminum housing
- Durable powder coated white finish
- >60,000 hour operating life (L70)
- Sensing and control options
Technical Details
- Housing: Corrosion resistant IP66 / IP69K die-cast aluminum, powder coated white finish
- Lens: Corrosion resistant tempered glass
- LEDs: Beam spread 120°, LM-80 tested, CRI >80, operating life >60,000 hours (L70)
- Electrical: 120-277V standard, 277-340V option, 50/60 Hz, PF 0.95, THD less than 10%, drive current 2400 mA, 10KV surge protection
- Controls: 0-10V dimmable standard, motion/ambient sensor and remote available
- Temperature: -40˚F to 113˚F (-40˚C to 45˚C)
- Access/Wiring: Factory-installed SW3 IP67 connector, power (5') and dimming leads (1'), pendant mount adapter or pendant+junction box
- Mounting: Hook (included), pendant adapter, pendant+junction box, tether secured for safety
- Weight: 9.6 lbs
- Listings: DLC Premium, UL Wet Location, IP65, IP69K, NSF
- Warranty: 5 year limited warranty
