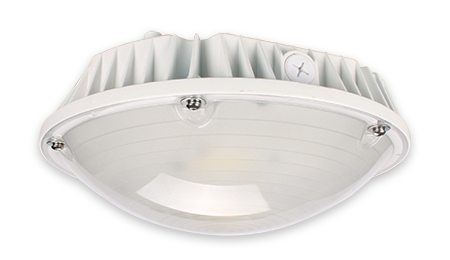

FSPG – Fidelux Smart Parking Garage Series
Safety, Efficiency & Performance
Product Description
Fidelux takes the lead in the industry with FSPG Smart Parking Garage fixtures, designed to
deliver a wide beam spread and uniform, low-glare illumination. The FSPG Series improves safety
and delivers excellent performance with low energy consumption to deliver exceptional payback.
Industry-leading premium drivers feature dim-to-off functionality and a 12-24V auxiliary output,
allowing easy and rapid integration of your controls.
The S2 sensor has a maximum detection radius of up over 25 feet with standard mounting heights
of up to 40 feet. It features both occupancy and daylight monitoring with step dimming. This
allows the user to program on/off/dim operation based on both ambient light and occupancy,
providing greater energy efficient operation.
S2 Sensors can link up to 15 wired units up to 100 feet. Contact factory for wireless linking.
Features & Benefits
- Up to 150 lm/W
- Rugged finish resists tough environments and corrosion
- 10kVA Surge protection standard
- Dim-to-off driver
- Driver features 12-24V auxiliary output
- Uniform bat-wing distribution
- Excellent thermal management
- Internal bi-level microwave sensor (S2RC Remote required for field programming)
- 5 Year warranty
Mounting Options
- Surface (standard, includes mounting plate)
- Surface with side wiring
- Pendant
Construction
- ADC12 Die-cast aluminum housing
- TGIC powder coating
- High impact PC lens
Listings
- UL Wet Location
- DLC Premium
S2 Sensor Features
- Occupancy and Daylight monitoring
- Daylight sensing
- Bi-level dimming
- Motion sensor max radius over 25 feet
- Standard mounting heights up to 40 feet
- IR remote programming and testing via the S2RC handheld remote (S2RC Remote required for field programming)
Brightness 100%; Sensitivity: 100%; Daylight Sensing: Disable; Hold Time: 5s; Standby time: +∞; Standby dimming level: 30%
S2 Sensors are only field programmable via the S2RC Handheld Remote Control.
