FRHBW – Fidelux High Bay
Round LED Natatorium Series
Product Description

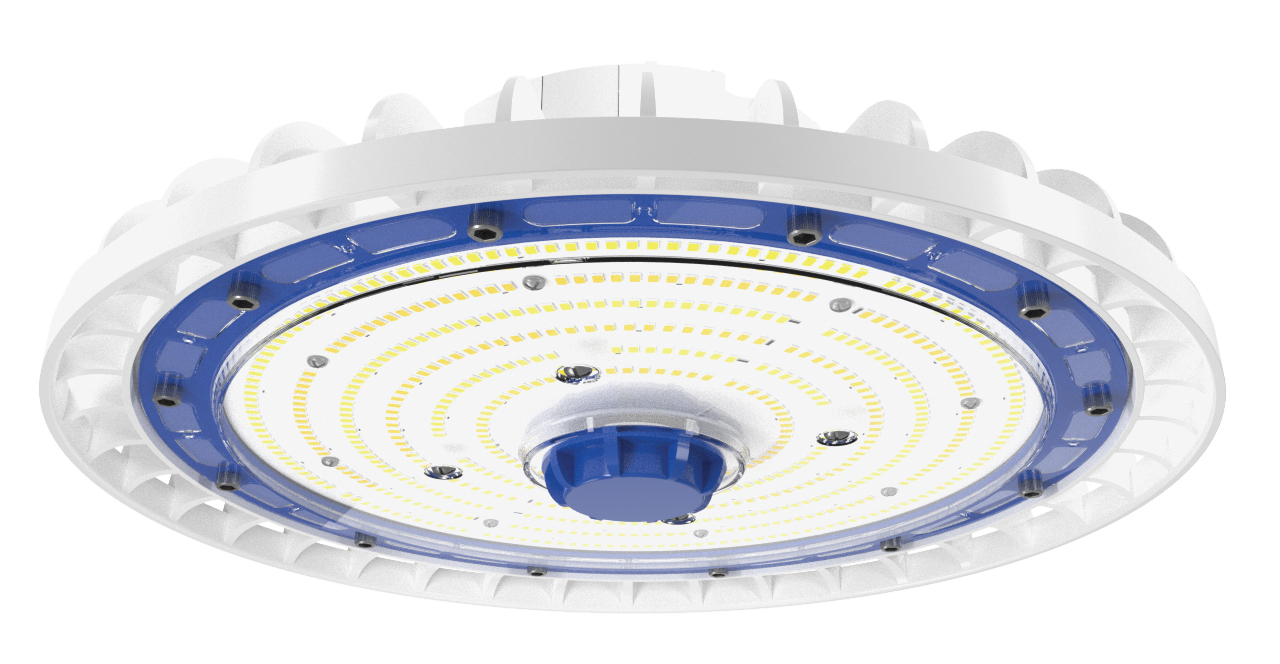

The Fidelux FRHBW Round LED Natatorium Luminaire series is uniquely designed for long-lasting durability in chlorinated environments. This series is proven to withstand harsh chlorine vapor, humidity, and water droplets, preventing localized corrosion while offering a wide range of lumen packages. FRHBW comes standard with a CCT selectable feature producing up to 150 lm/W. Fixtures feature a 120 micron powder-coated finish, which is 100% thicker than standard finishes, enhancing durability.
The polycarbonate anti-UV IK08 lens offers beam spreads of 60, 90 and 120 degrees. Optional integrated sensors provide PIR and ambient light functions, programmable in the field with a remote control. IP65 External Emergency Battery Packs are available for all wattages, factory or field installed, with optional remote testing.
Features & Benefits
- 400 Hour Salt Spray tested
- IK08 impact resistant polycarbonate lens
- 120 Micron corrosion-resistant finish
- Energy efficient performance up to 150 lm/W
- Waterproof gasketing
- >50,000 hours operating life (L70)

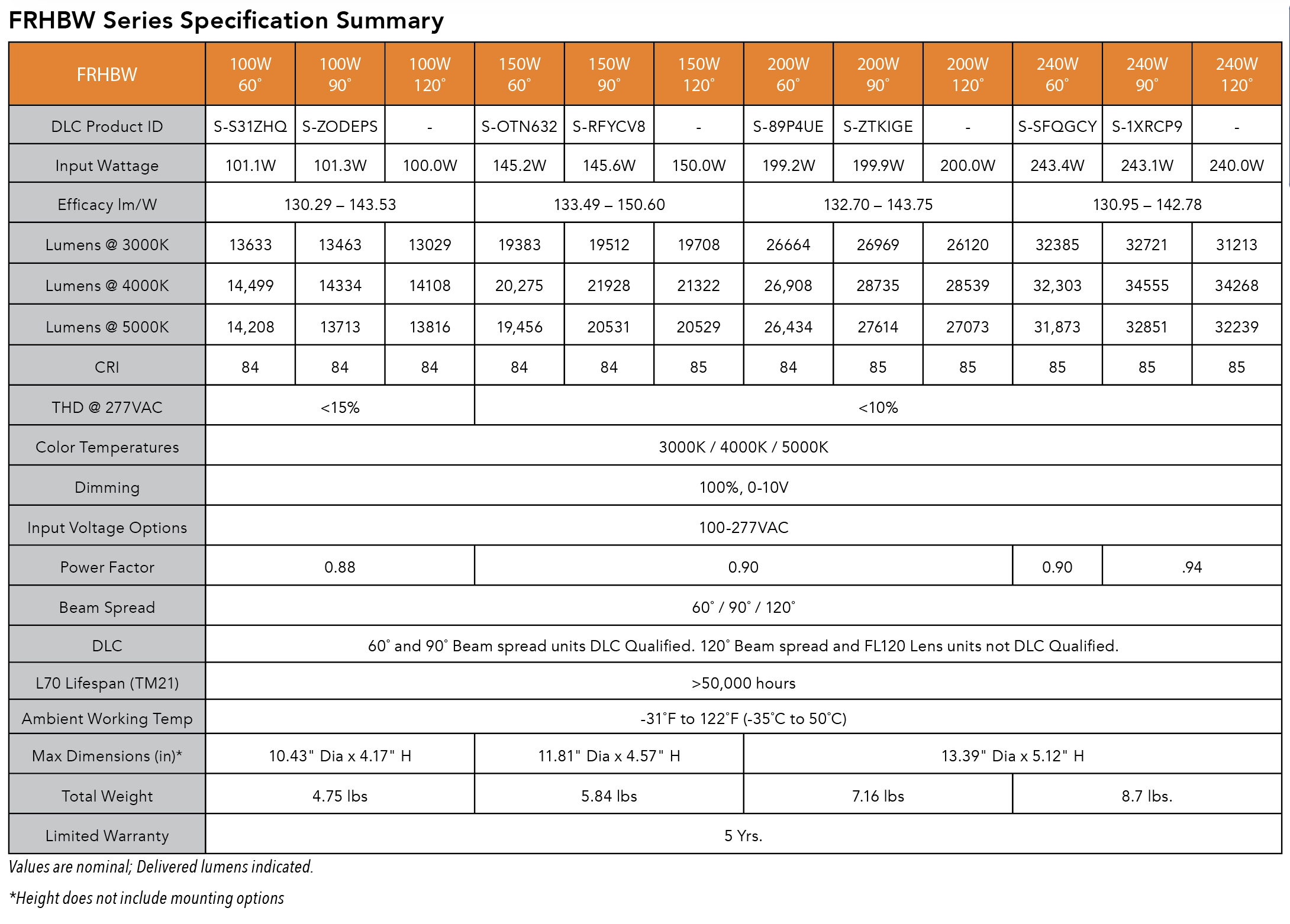

Technical Details
- Housing: Die-cast aluminum with 120 micron corrosion-resistant powder-coated finish, stainless steel screws
- LEDs: CRI >84, operating life >50,000 hours (L70), selectable CCT
- Optics: 60°, 90°, or 120° beam spread IK08 polycarbonate lens; frosted lens option; aluminum and prismatic shades available
- Electrical: 120-277V, 50/60 Hz, PF >0.9, THD <20%; Drive current 100W: 0.8A; 150W: 1.2A; 200W: 1.7A; 240W: 2.0A
- Emergency Power: External EM battery packs, 90 min duration; FEM-T25 and FEM-T40 options with remote testing
- Controls: 0-10V dimmable standard; optional PIR/Ambient sensor; optional remote for programming
- Temperature Range: -31˚F to 122˚F (-35˚C to 50˚C)
- Access/Wiring: External connectors, 5' power cord, IP65 CCT switch, 1' dimming wire
- Mounting: Closed Ring (included), Yoke, Hook, Pendant options; pipe adapters available
- Weight: 100W – 4.75 lbs; 150W – 5.84 lbs; 200W – 7.16 lbs; 240W – 8.70 lbs
- Listings: UL, DLC Premium
- Warranty: 5 year limited warranty
